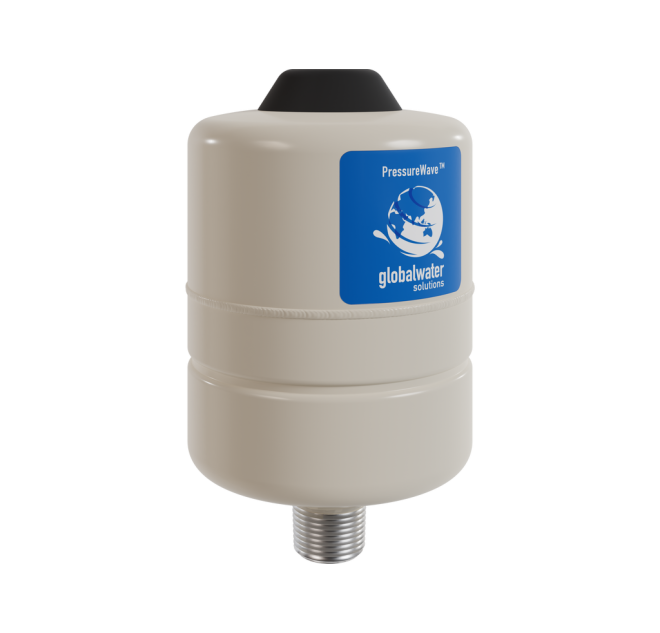

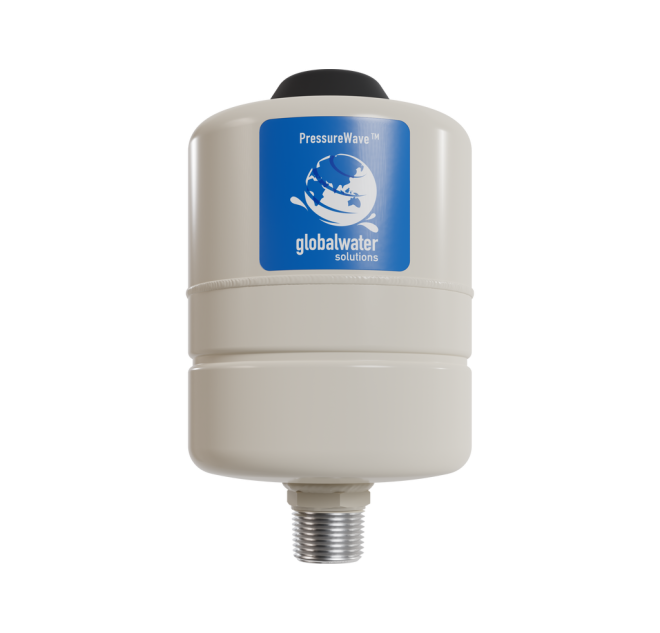

PressureWave™ Vertical Pressure Tank

The PressureWave™ inline pressure tank is designed for compact systems requiring reliable pressure stabilization. Its virgin polypropylene liner and high-grade butyl diaphragm, reinforced in wear-prone areas, ensure extended durability. The patented stainless-steel water connection and O-ring-sealed brass air valve provide leak-free performance with minimal maintenance.

Equipped with a 1" NPT connection and pre-charged to 1.9 bar, this inline tank is suitable for thermal expansion and small booster system applications. Its carbon steel shell, coated with a dual-layer polyurethane finish, guarantees long-lasting protection against corrosion and wear.
• Booster systems
• Thermal expansion
• Irrigation systems
• Hydraulic hammer arresting
Technical Specifications:
- Temp Max: 90°C / 194°F
- Pressure Pre-charge bar: 1.9 bar / 28 psi
- Nominal Volume: 8L/18L/24L
- Connection: 1" MNPT
- Pressure Max: 10 bar/16 bar
