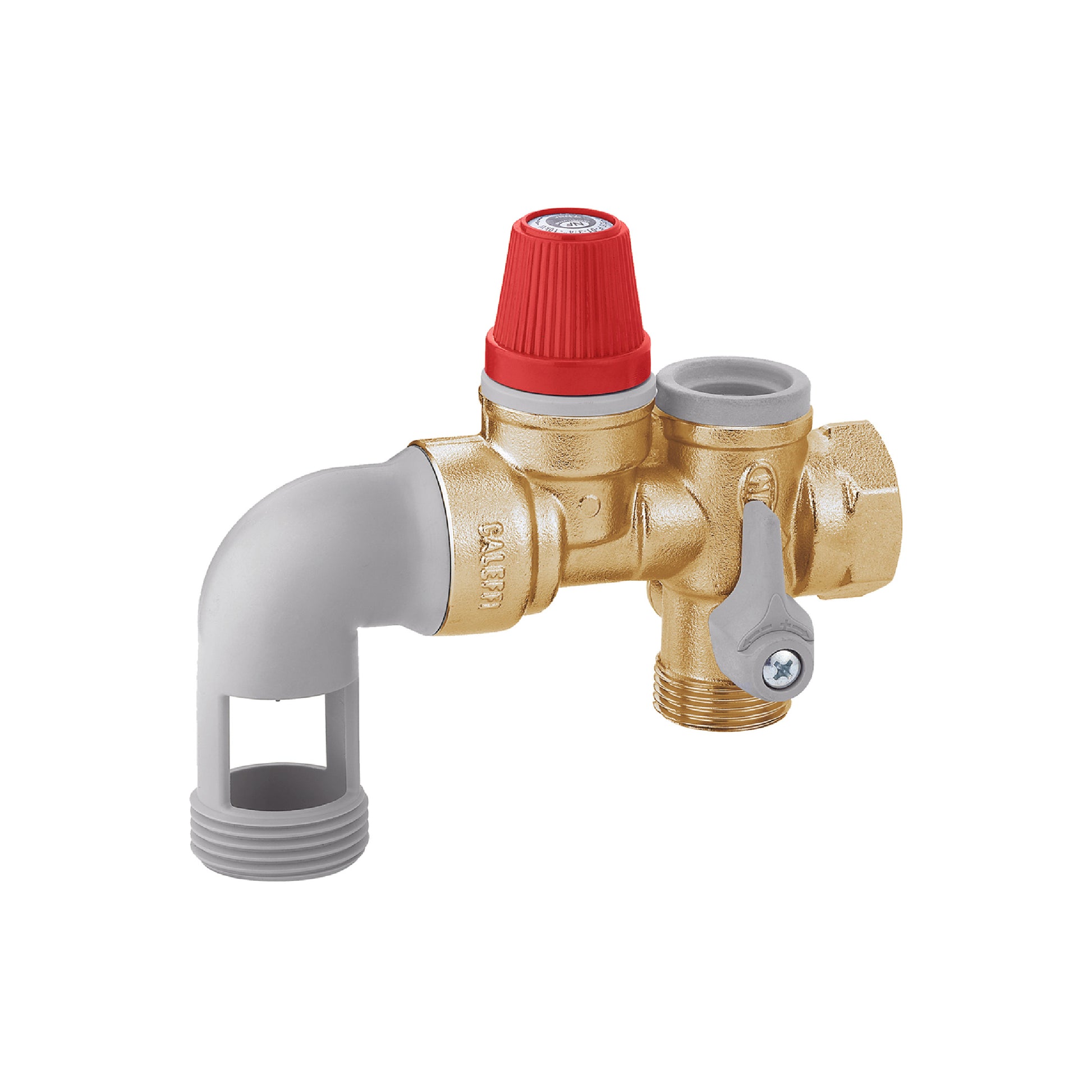

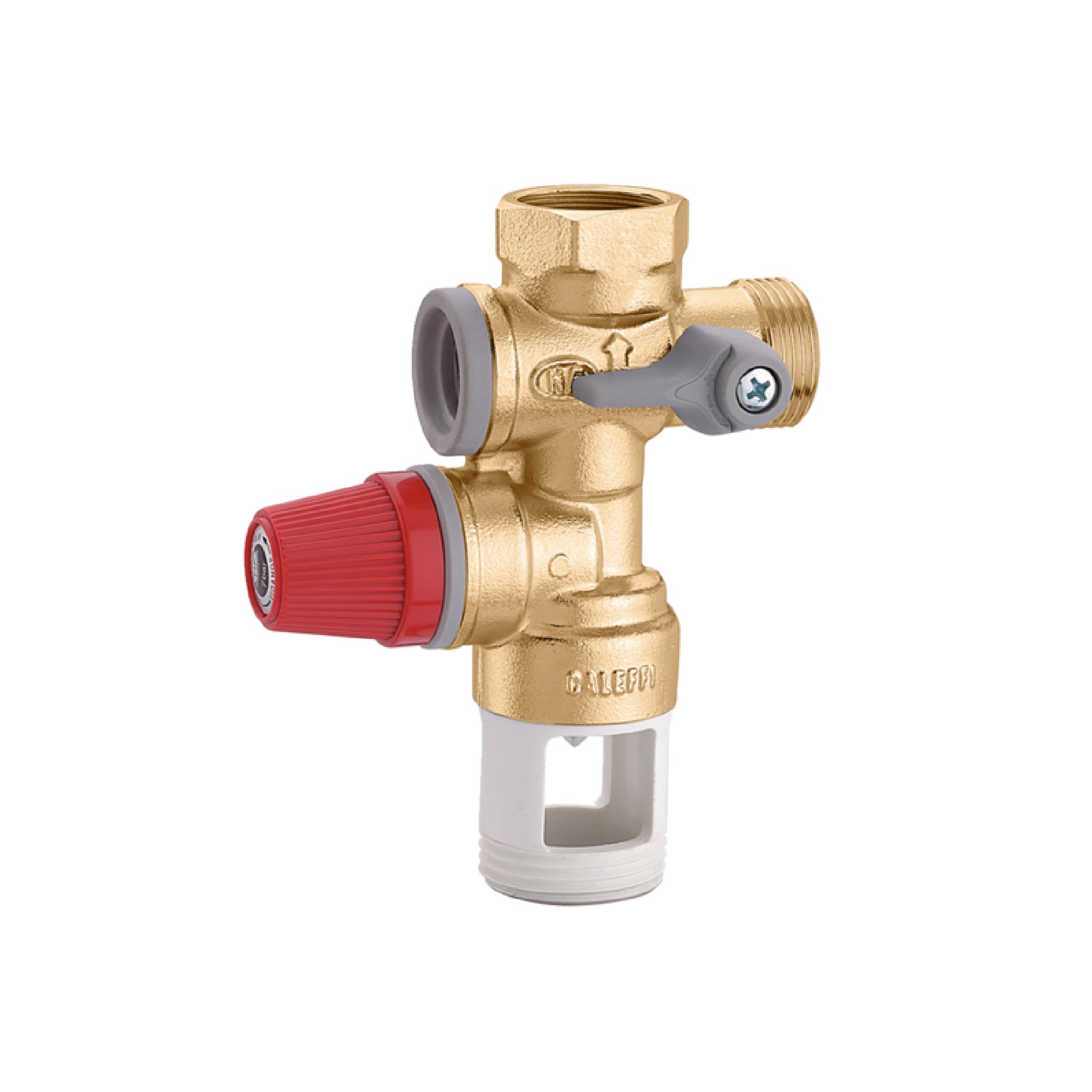

Caleffi Hydraulic Safety Group

Hydraulic safety group 3/4" for hot water storage heaters, with shut-off valve and controllable check valve. For horizontal installation, with standard seat.

Certified to EN 1487.

Technical data:

Maximum working pressure: 10 bar
Medium temperature range: 2–120 °C
Setting: 7 bar
Maximum discharge rating: 10 kW
Finish: chrome
Material: brass
