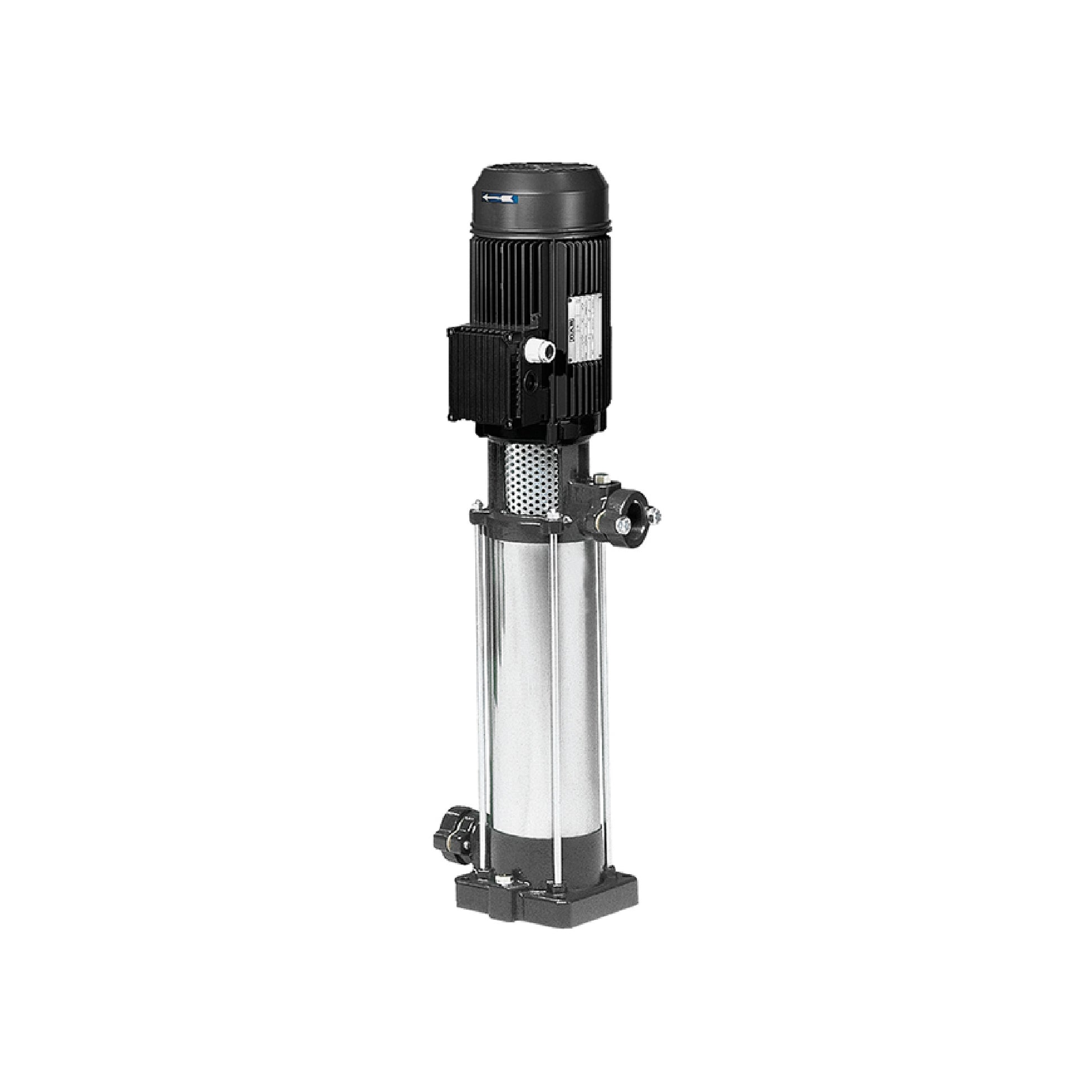

DAB KV Pump

Vertical multistage centrifugal pump suitable for small to medium user water systems. Suitable for pressurisation units, boiler supply, hot water circulation, channelling of condensate and cooling water, fire fighting and washing systems, drinking water supply and filling of pressure vessels, sprinkler and watering systems

Technical specifications:

• Operating range: from 1,8 to 13,5 m3/h with head up to 139 metres.
• Maximum operating pressure: 18 bar (1800 kPa).
• Installation: fixed, vertical position.
• Liquid temperature range: from 0 °C to +35 °C for domestic use (EN 60335-2-41) from -15°C to +110°C for other uses.

DAB KV Series Technical Sheet
