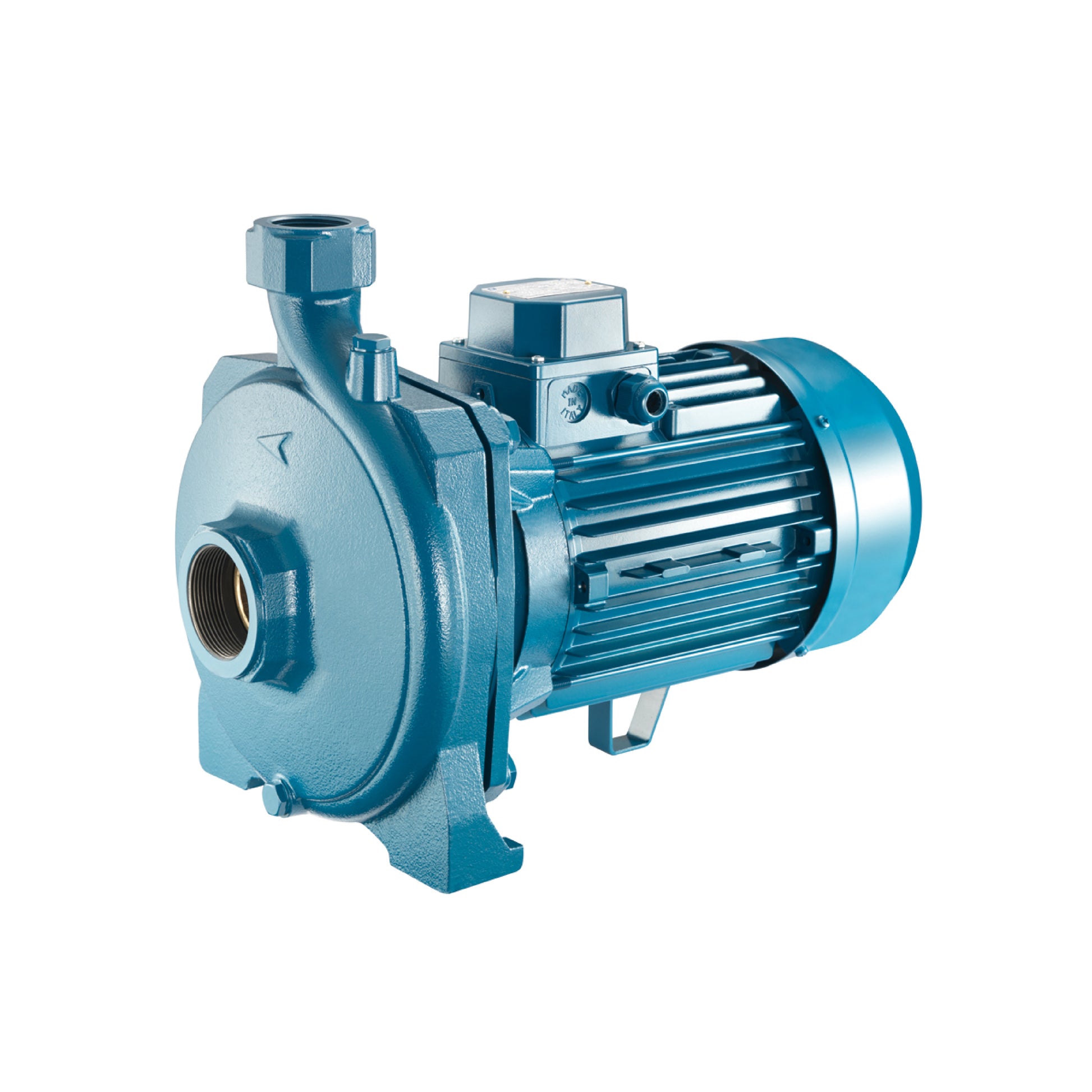

Pentax CM 100

Single-impeller centrifugal pump, extremely quiet, suitable for domestic, civil and industrial applications. The pump guarantees constant pressure at the variation of flow rates. CONSTRUCTION FEATURES
Pump body cast iron
Motor bracket cast iron (45, 50, 164÷550);
aluminum (75÷100)
Impeller noryl® (45)
noryl® or brass (50-314)
brass (400-550)
Seal ceramic-graphite-NBR
Pump shaft end steel AISI 416 (45÷100)
steel AISI 303 (164÷550)
Ambient temperature impeller in noryl®: 0 - 50 °C
brass impeller: 0 - 90 °C
Pump body gasket max 6 bar (45-100)
max 8 bar (164-550)
Motor
2 poles induction motor 3~ 230/400V-50Hz
1~ 230V-50Hz (with thermal protection up to MEC 80)
Insulation class F
Protection degree IPX4
