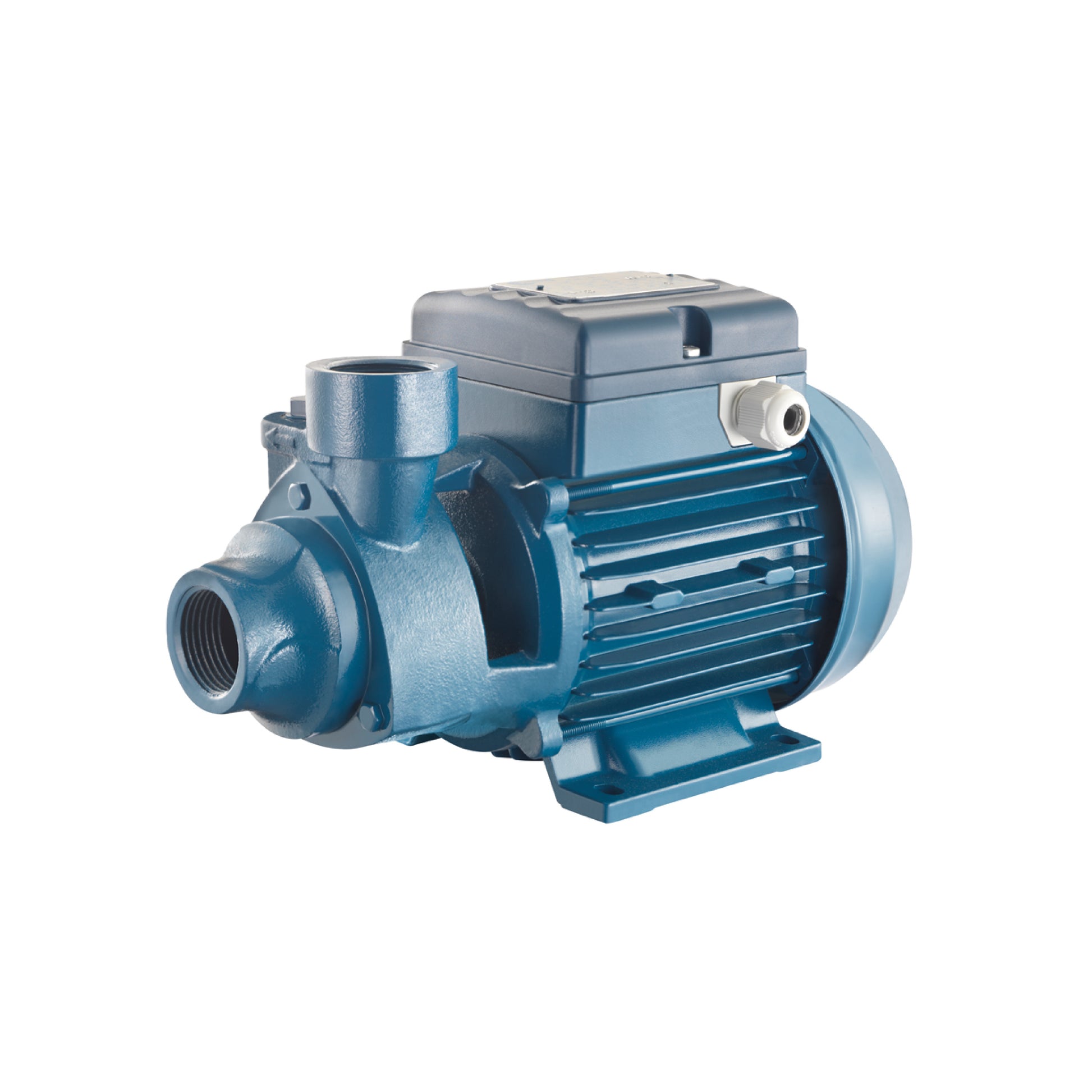

Pentax PM45
Pentax PM45
Couldn't load pickup availability
Peripheral positive displacement pump with front suction (PM) and side suction with self-priming system (PM A) for small household systems and simple industrial applications; characterised by a considerable ratio between performance and required output. CONSTRUCTION FEATURES
Pump body cast iron, bronze (45BR)
Motor bracket cast iron, cast iron or bronze (45BR); aluminum with inserto AISI304
Impeller brass
Seal ceramic-graphite-NBR
Pump shaft end steel AISI 416
Ambient temperature 0 - 90 °C
Pump body gasket max 6 bar (45,50)
max 8 bar (65, 80)
max 9 bar (90)
Motor
2 poles induction motor 3~ 230/400V-50Hz
1~ 230V-50Hz
Insulation class F
Protection degree IPX4
