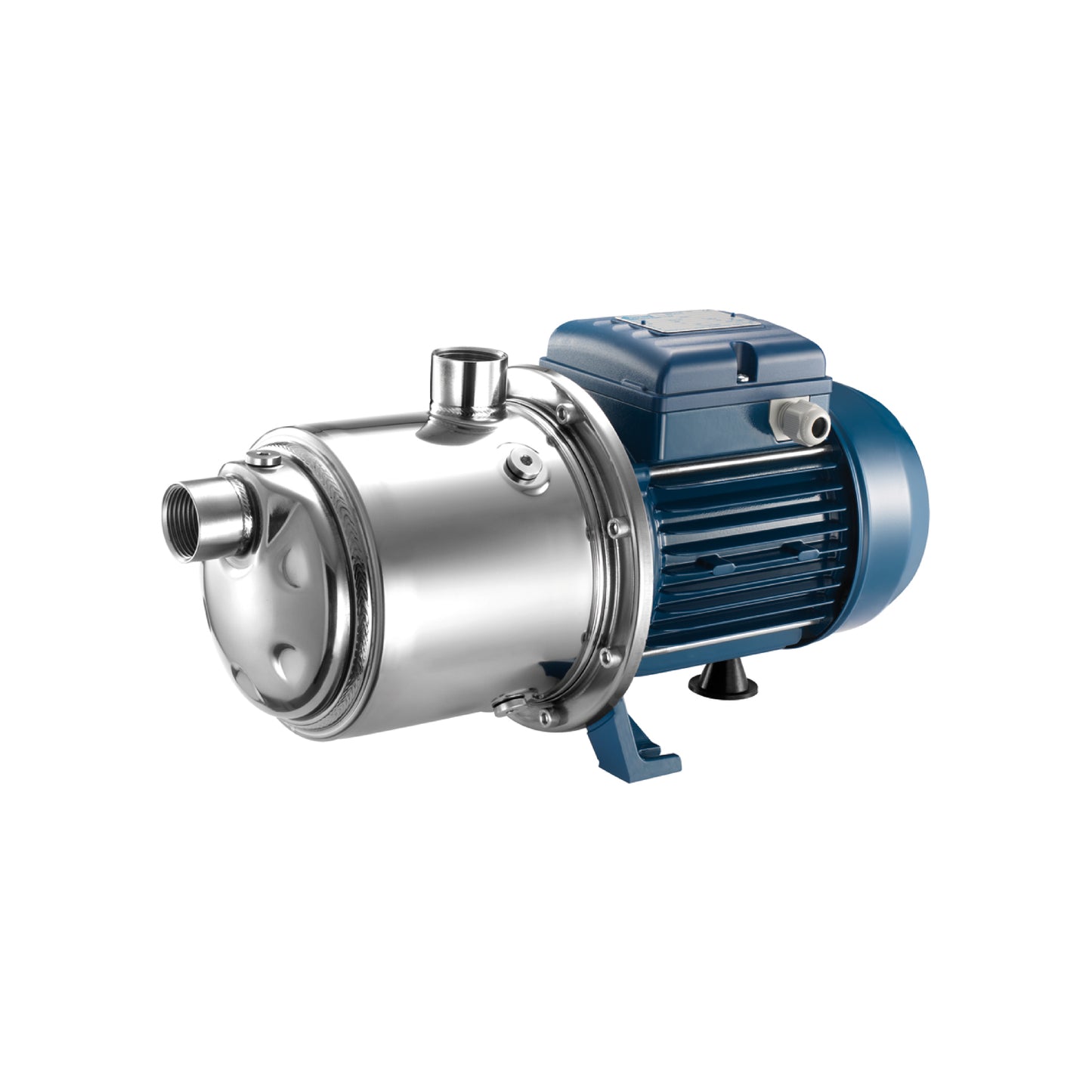

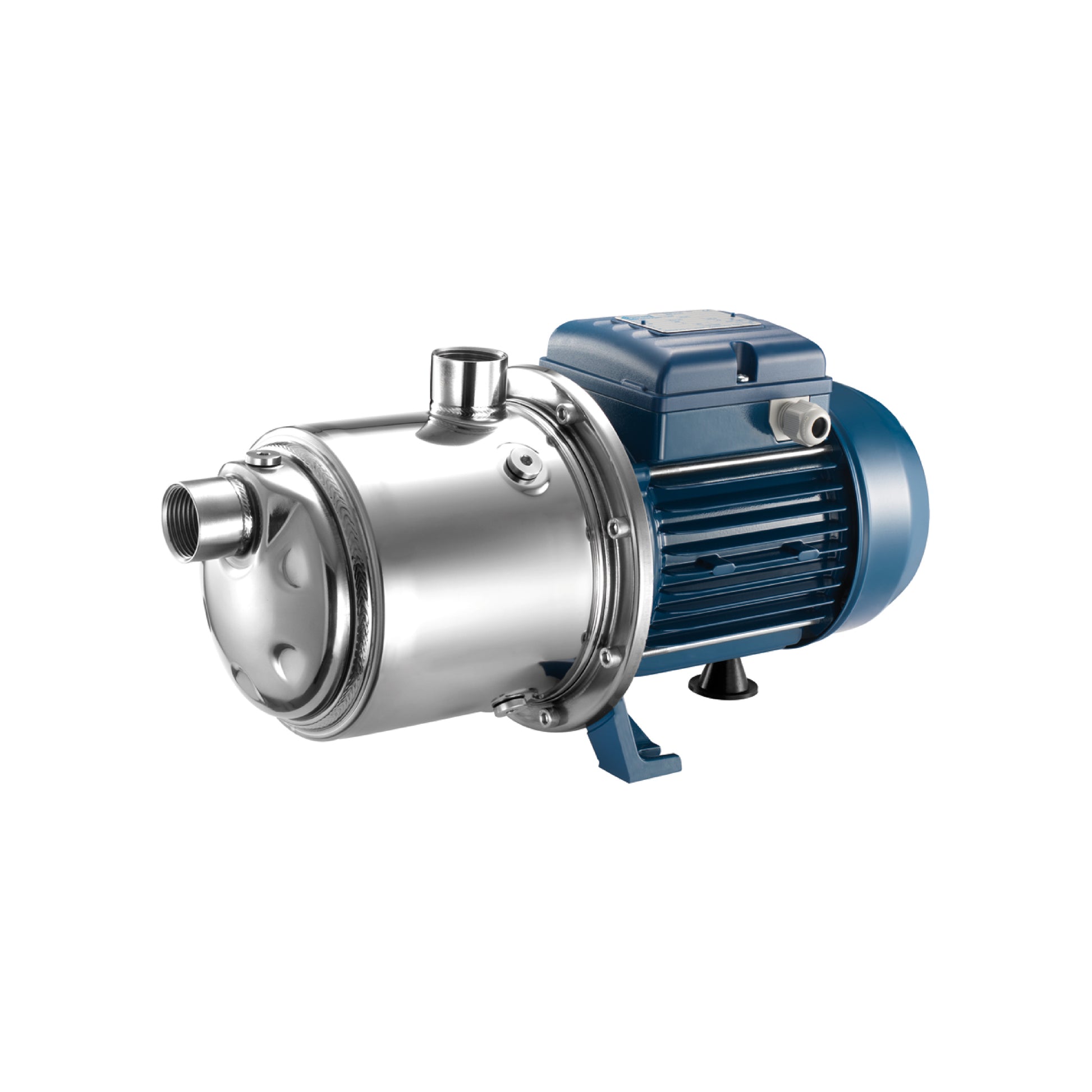

Pentax Ultra Horizontal

Stainless steel multistage horizontal pumps. Pumping of clean non-loaded fluids, pressurizing system, irrigation, drinking and glycol water, water treatment, heating and air conditioning, washing system. CONSTRUCTION FEATURES
Pump body steel AISI 304
Motor bracket aluminum
Impeller steel AISI 304
Seal ceramic-graphite-EPDM ≤ 6 impellers,
graphite-silicon carbide-EPDM ≥ 7 impellers
Pump shaft end steel AISI 304
Ambient temperature -15 ÷ +110 °C
Pump body gasket max 8,5 bar
Motor
2 poles induction motor 3~ 230/400V-50Hz,
1~ 230V-50Hz with thermoprotector up to 1.85 kW
Insulation class F
Protection degree IPX4
