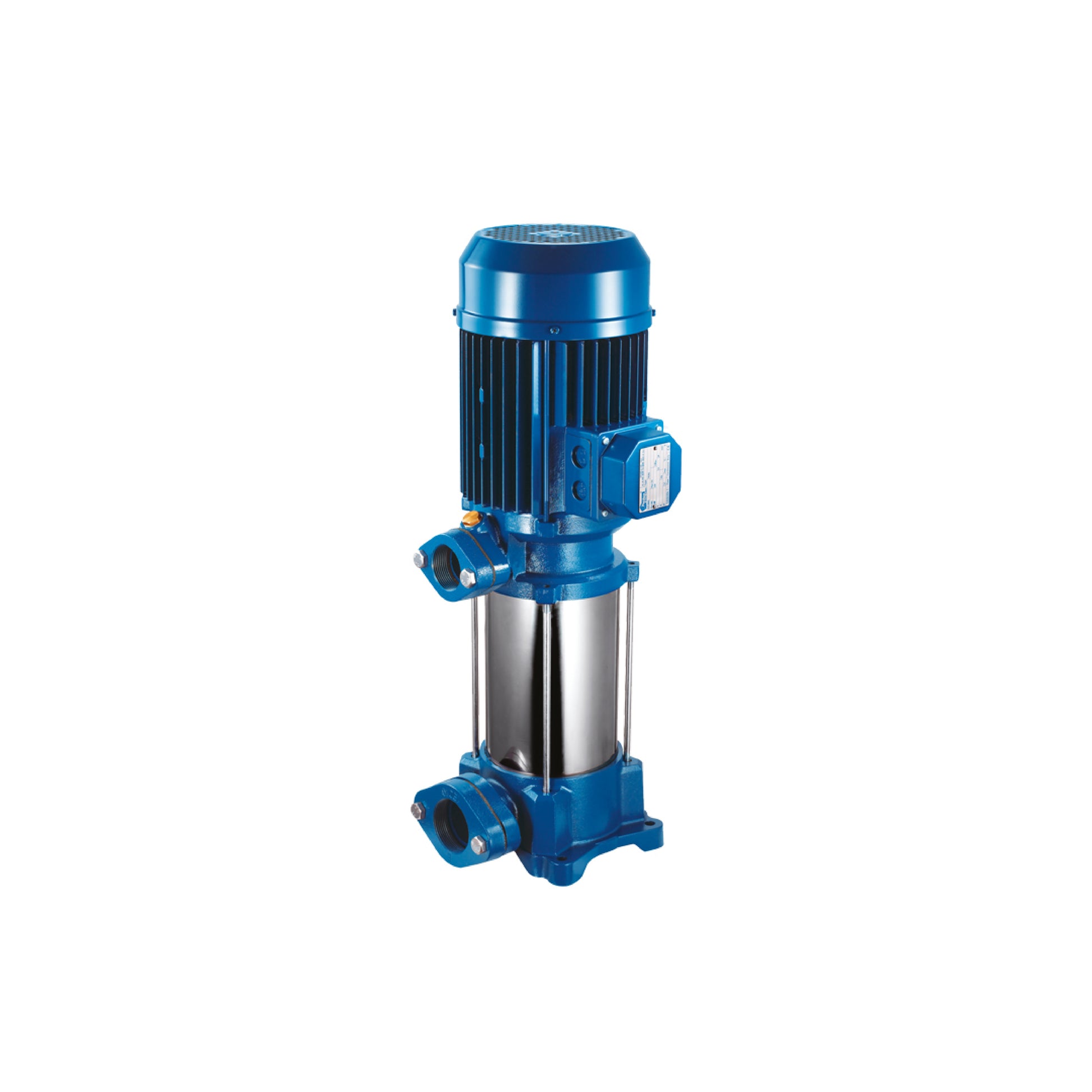

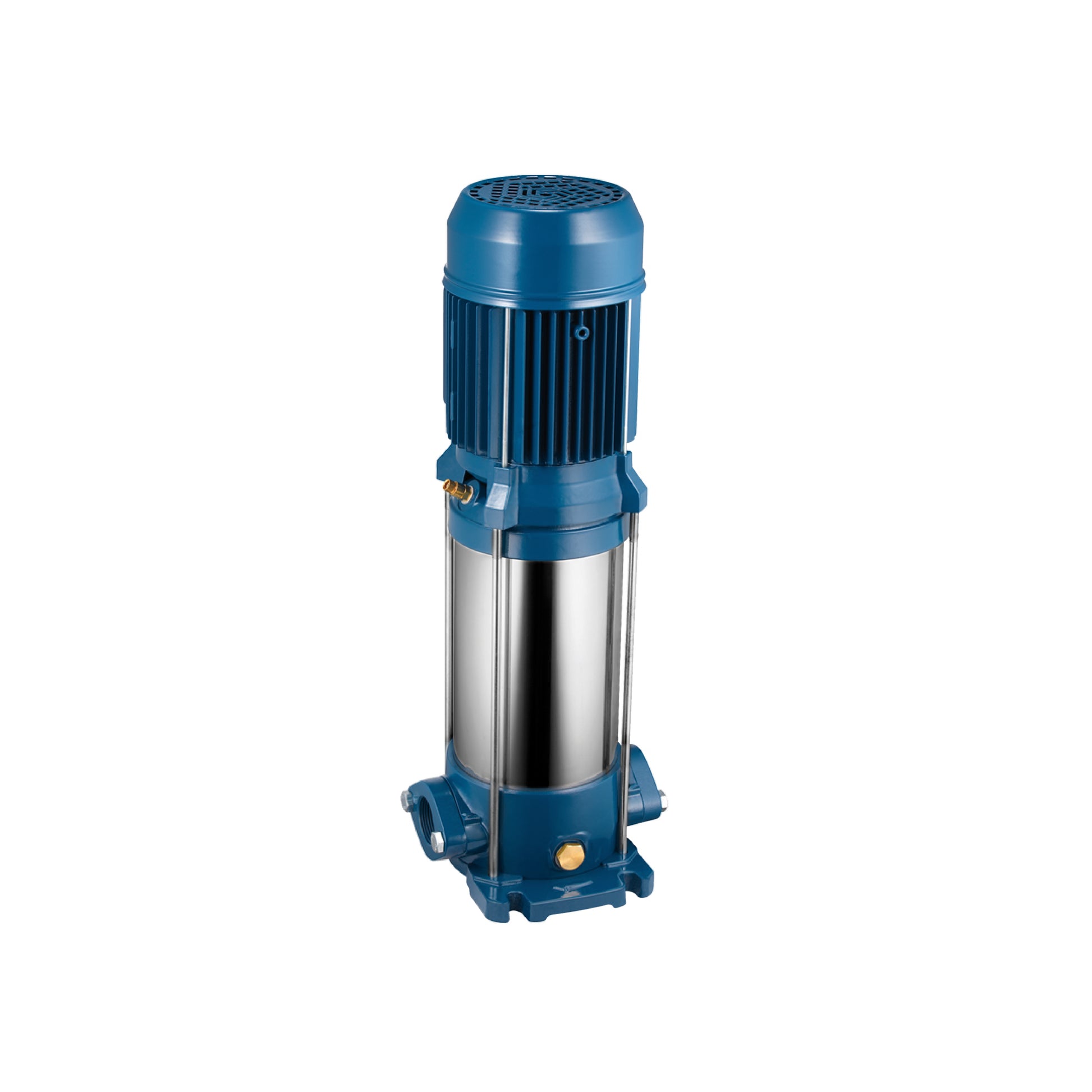

Pentax Ultra Pump V

Stainless steel multistage vertical pumps. Pumping of clean non-loaded fluids, pressurizing system, irrigation, drinking and glycol water, water treatment, food industry, heating and air conditioning, washing system.

Construction features:

• Pump body: cast iron
• Motor bracket: cast iron
• Seal plate: Housing noryl®
• Impeller: diffuser steel AISI 304
• Intermediate shaft guiding stage bush: ceramic-graphite-EPDM ≤ 6 impellers, graphite-silicon carbide-EPDM ≥ 7 impellers
• Seal: ceramic-tungsten carbide
• Depth of immersion: max 40 °C
• Intermediate shaft guiding stage bush: +5 ÷ +35 °C
• Ambient temperature: 8 bar ≤ 6 impellers; 14 bar ≥ 7 impellers
• Liquid temperature EPDM Motor: 2 poles induction motor 3~ 230/400V-50Hz P ≤ 4kW
  3~ 400/690V-50Hz P> 4kW; 1~ 230V-50Hz (with thermoprotector up to 1.85 kW)
• Insulation class: F
• Protection degree: IPX4; IPX5 ≥ 4,5 HP

Ultra V Technical Sheet
